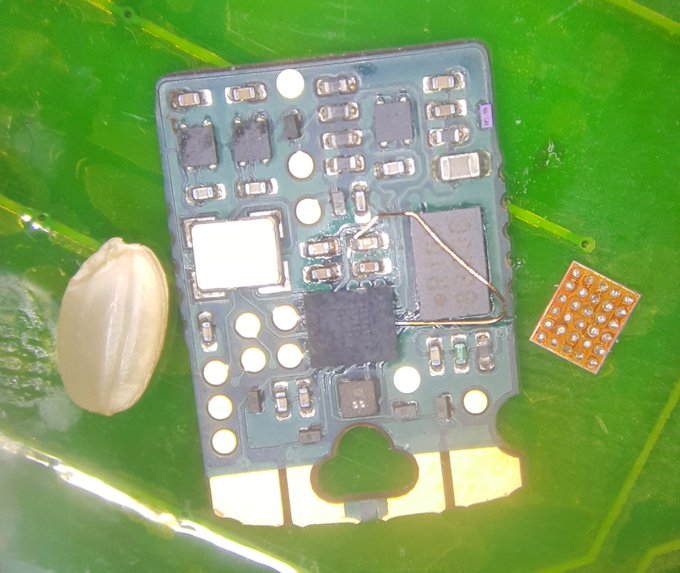

Phew, just helped @xobs rework a Fomu. Had to rewire a ball under the CSP...which entails removing the CSP, applying UV soldermask to the pad, tacking fly-wire *next* to ball, then reflow a (new) CSP. Took two tries, but it seems to work now. Grain of rice for scale on left. 😅 pic.twitter.com/t4KwOpvAFm
|
||||||
|
||||||
|
Karolis Stasaitis
@carlossless
|
28. ožu |
|
How long did that take? It would seem that changing the pcb might be easier if you’re patching at that level.
|
||
|
|
||
|
bunnie
@bunniestudios
|
28. ožu |
|
I think I woke up a bit after noon today and we had it working by...3PM? and in between we went to lunch. Now that I know how to do it, if I had to reproduce it, maybe 15-30 minutes. It's feasible, just the yield is 50/50. Defs cheaper than spinning a new PCB for a couple units.
|
||
|
|
||
|
Mr Robit
@therobotbuilder
|
28. ožu |
|
Where'd you get such big rice 😂
Seriously though, that's some pretty slick rework.
|
||
|
|
||
|
bunnie
@bunniestudios
|
28. ožu |
|
The rice is from hackerfarm Japan. @freaklabs does know how to grow a healthy crop, but actually, these rice grains are shorter than the typical rice found in the US, it's similar in size to sushi rice.
|
||
|
|
||
|
Aw vnx
@Awvnx
|
28. ožu |
|
what size are those caps?
|
||
|
|
||
|
bunnie
@bunniestudios
|
29. ožu |
|
mostly 0201s...
|
||
|
|
||
|
Antti Lukats
@AnttiBrain
|
29. ožu |
|
Care to reveal why patch was needed?
|
||
|
|
||
|
bunnie
@bunniestudios
|
29. ožu |
|
VDD/GND swap on the I/O bank that drives USB and LEDs
|
||
|
|
||
|
Joe Fitz
@securelyfitz
|
28. ožu |
|
I like the precedent. I think grains of rice should be the default scale item in microscope photos from now on...
|
||
|
|
||
|
🇦🇷 Francisco ~ 🤹🏽 ACROBOTIC 🤖
@acrobotic
|
28. ožu |
|
A micro-scale banana, one could say. I henceforth declare 2019 as the year of “grain of rice for scale.”
|
||
|
|
||
